Main parameters for archiving:

• Load on wings
• Load of several body frame points
• Load on landing gears (during take-off and landing)
• Engine management data
• On-board video recording of flight maneuvers and pilot activity in high loaded situations
• 3 axis acceleration measurement
• GPS position, absolute speed, altitude and date-time registration
• Aircraft air relative speed

Sampling rate of analog parameters are 1-10 samples/second

Sampling rate of video capture is 10-30 frames/second

The Data Archiving Box can store flight data during the whole lifetime of the airplane

Main components and sensors of the On-board Data Archiving Box

• 32bit embedded microprocessor
• Redundant non-volatile memory
• Video camera and Mpeg4 encoder for video stream
• Force measuring stain-gauges sensors up to 16 pieces
• 3 axis accelerometer with range up to 12g
• Data interface for many type of engine management computers
• GPS module
• Pitot tube for air speed measurement
• On-board autonomy for detecting high loaded periods
• High frequency sampling rate during high loaded periods
• Weight is less than 500 gr.

Data Analysing System

• Off-line data download through secure wireless protocol

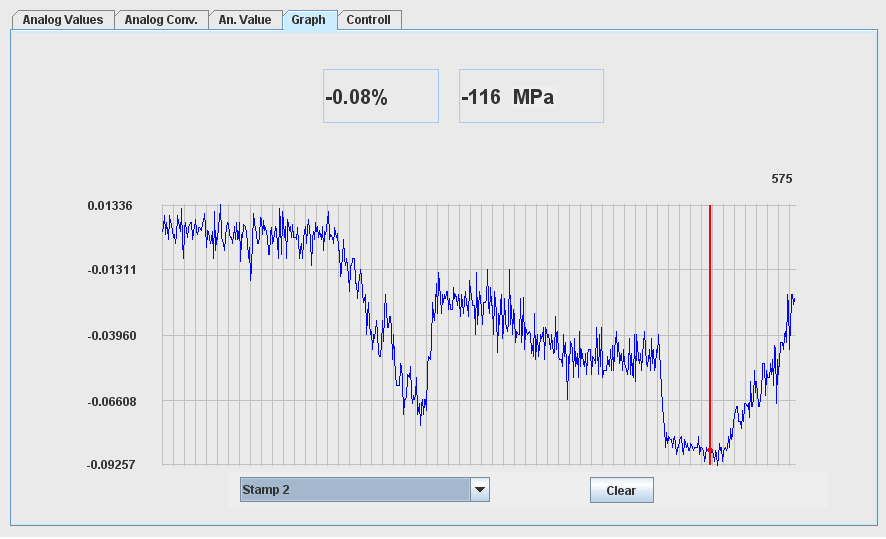

• Internet based visualization using built-in web server module
• Centralized data analysis for airplane manufacturers and servicing partner companies
• Automated warranty void criteria searching in downloaded flight data

DABAS black box
On-board Flight Data Archiving Box and Analysing System for Small Airplanes
